Item

Manufacturer

Technical Parameter

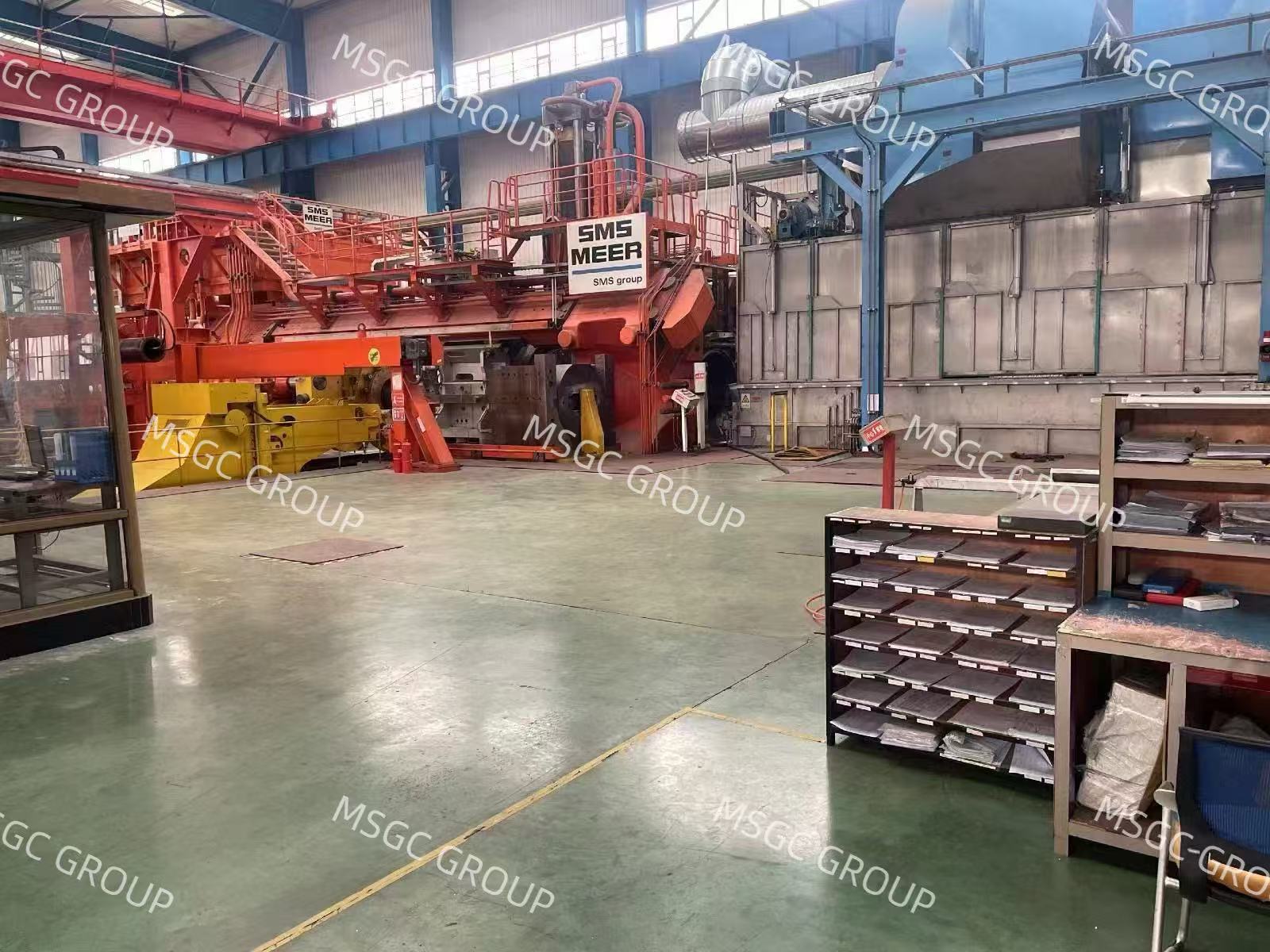

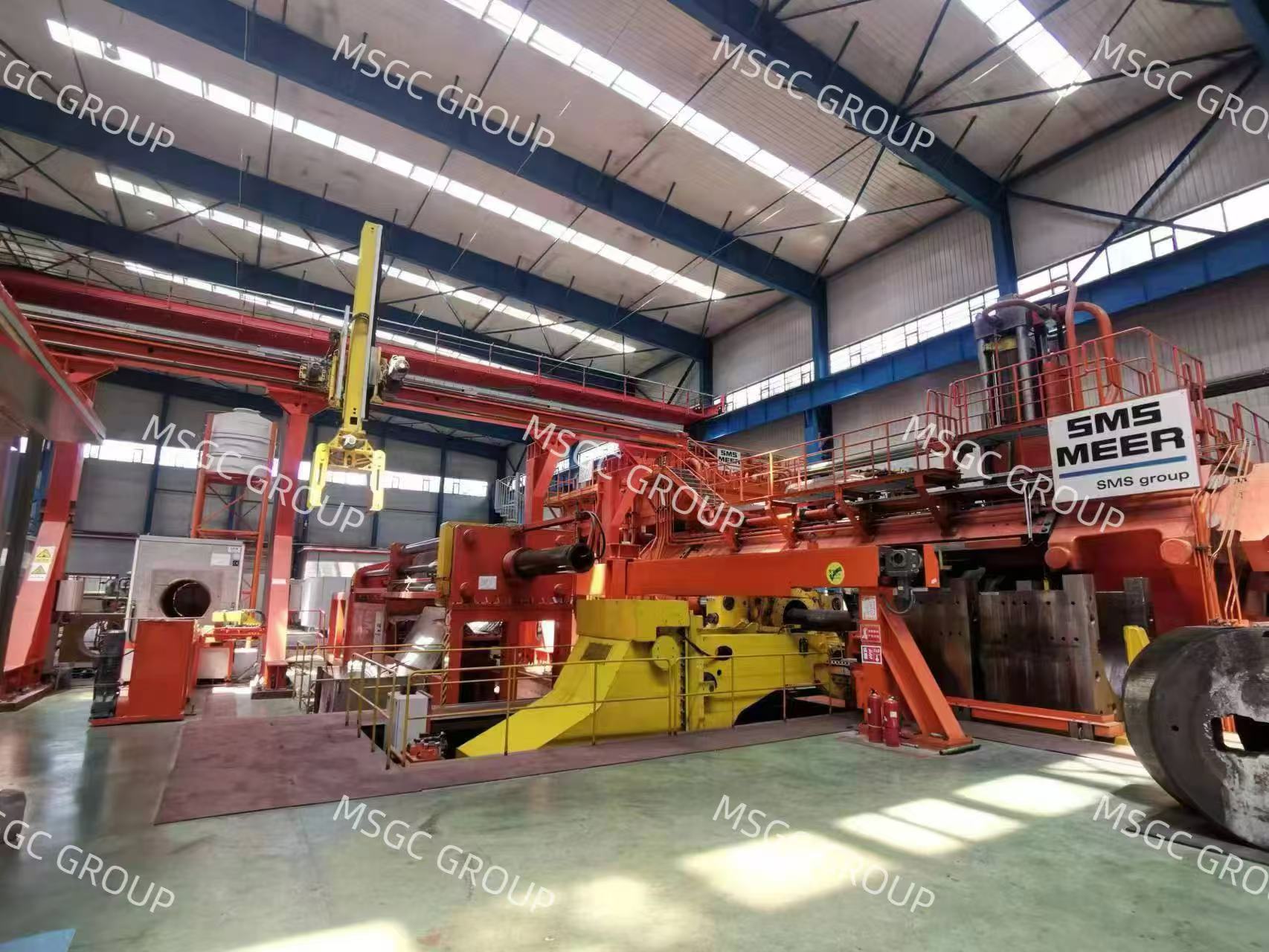

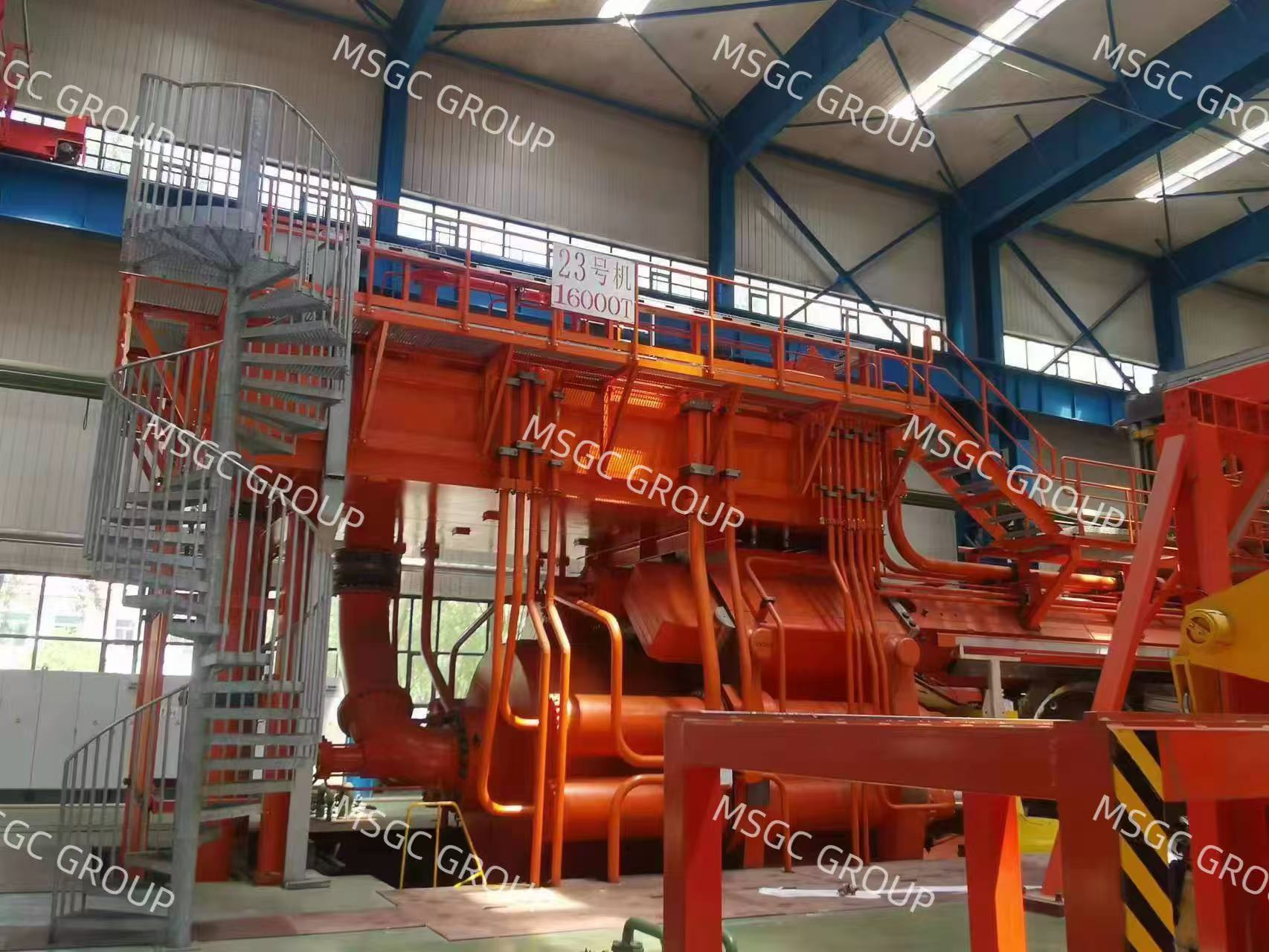

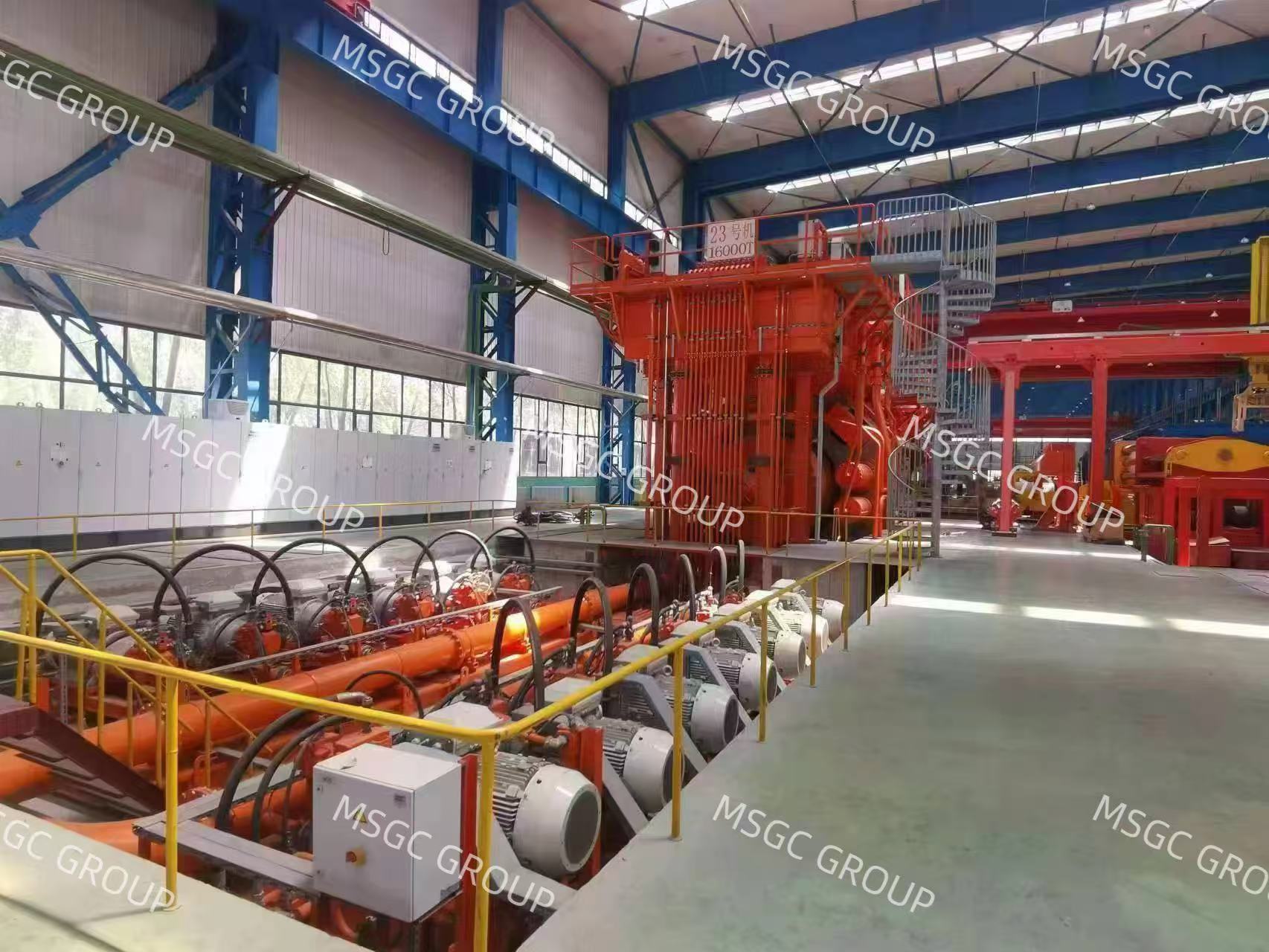

16000MT Aluminum extrusion press

Germany

Extrude capacity

Main cylinder 13560 tons

Side cylinder 2440 tons

Total 16000 tons

working pressure

31Mpa

Main cylinder diameter

φ 2360mm

Side cylinder diameter

φ 360mm X 4 pieces

Return stroke capacity

10.8MN

Extrude stroke

3700mm

Billet Length

Minimum 900mm

Maximum 2500mm

Cointainer inner diameter

615mm/735mm

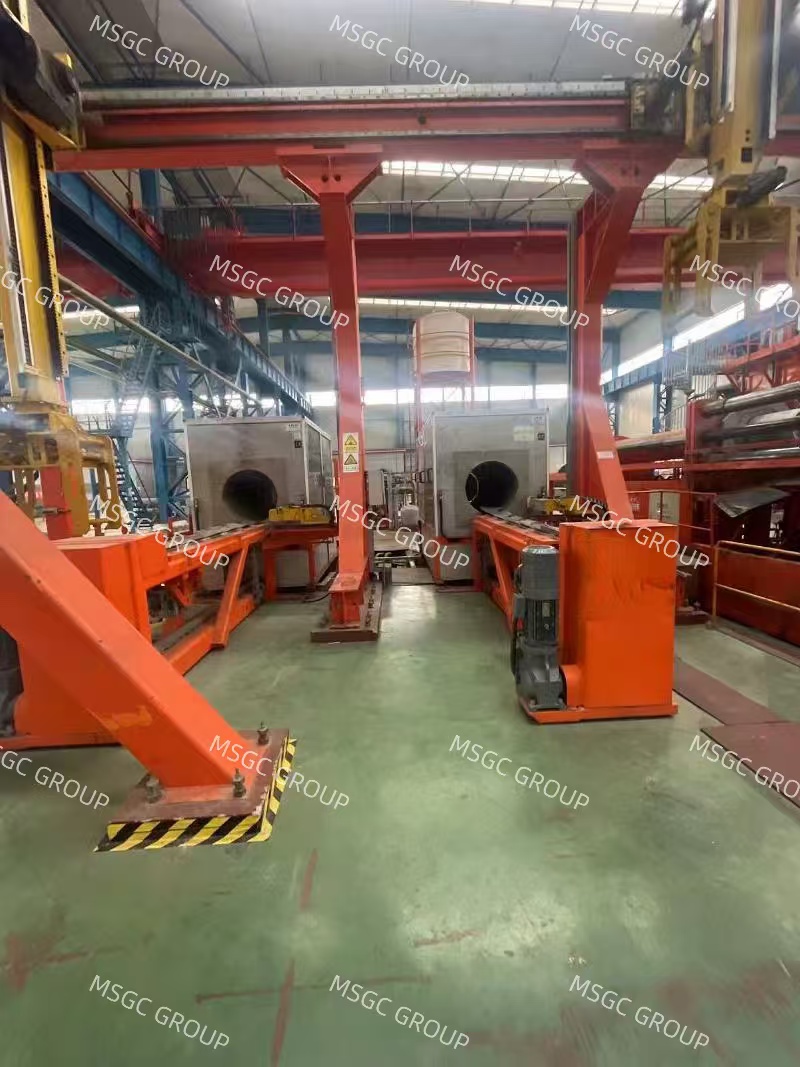

Aluminum rod induction furnace

Germany

Billet diameter

610mm/720mm

Billet length

750mm—2500mm

Maximum heating temperature

570℃

Quenching device

Italy

Maximum height of profile

750mm

Maximum width of profile

1150mm

Roller width

1300mm

Roller pitch

400mm

Run out table max bearing capacity

260Kg/m

Cooling table max beaering capacity

160Kg/m

Cooling table max loading capacity

200Kg/m

Cooling type

Water mist/spray/air cooling

Maximum size of cooling profile

1500mm (width) X 750mm (height)

Maximum air volume for water mist air cooling

400000m³/h

Maximum air volume for strong wind cooling

670000m³/h

Maximum water cooling capacity

450m³/h

Quenching hood length

16m

Puller

Italy

Maximum pulling  width

1150mm

Maximum pulling height

750mm

Pulling capacity

0.15—20KN

Middle saw blade diameter

2000mm

Rail length

110m

Handling table

China

Outline dimensions

140mX31m

Run out table roller length

58m

Run out table moving beam pitch

1200mm

Horizontal convey distance

0—1150m

Cooling table step speed

20m/min

Convey pitch

1200mm

Stretching straightening machine

China

Maximum capacity

12MN

Maximum stroke

2500mm

Minimum profile length

8m

Maximum profile length

58m

Jaw size

φ750/200*1150mm

Rotate angle

±20°

Finished saw

China

Blade Diameter

2100mm

Feed rate

20—200mm

Sawing range

φ750/200*1150mm

Fixed distance

1.1-30m

Sawing accuracy

±2mm

Stacking system

China

Die oven

  China

Peeling machine

 China
