Item

Unit

Numerical value

Locking force

kN

25000

Locking stroke

mm

1500

Die casting mold thickness (minimum maximum)

mm

700-1800

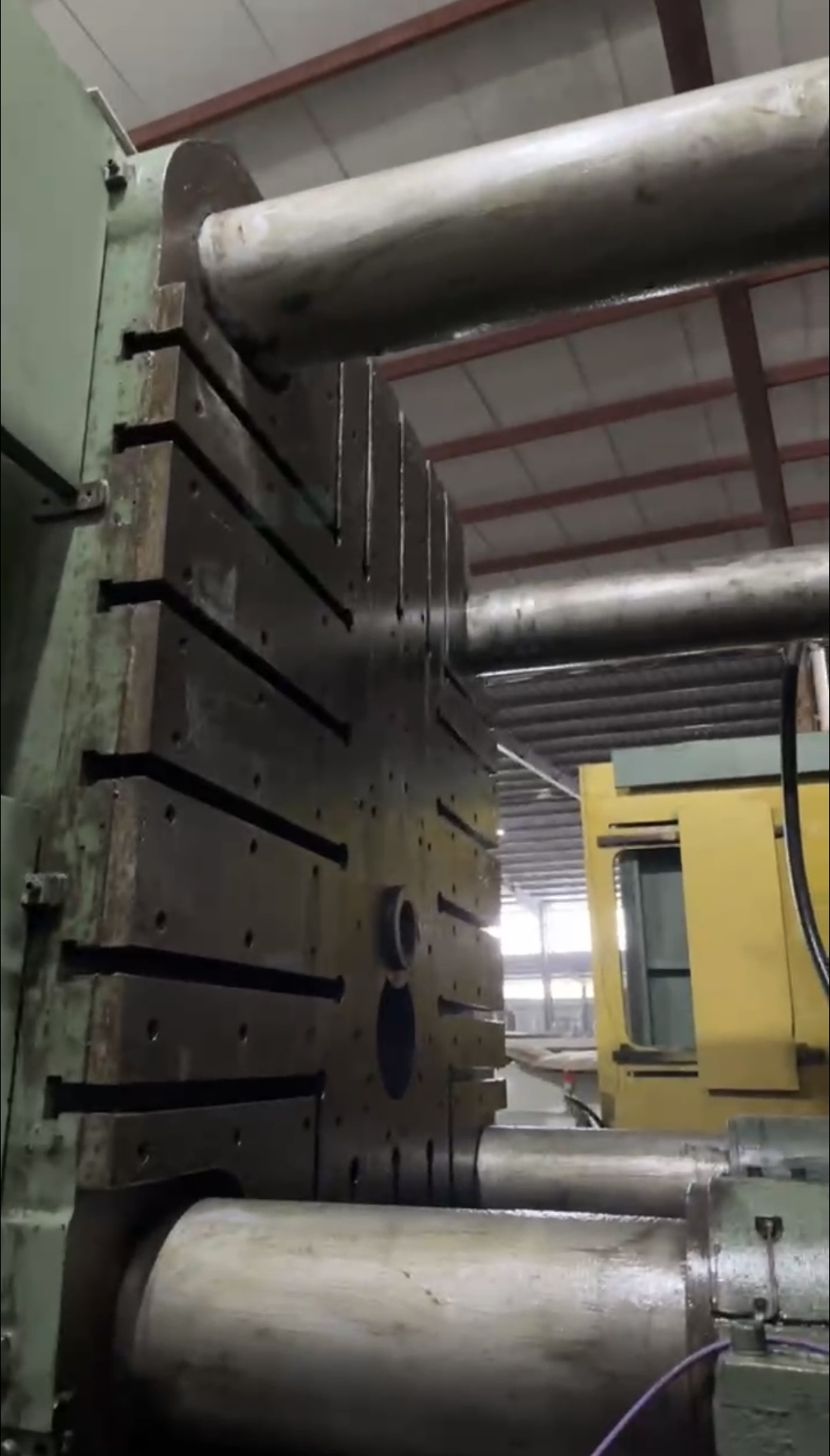

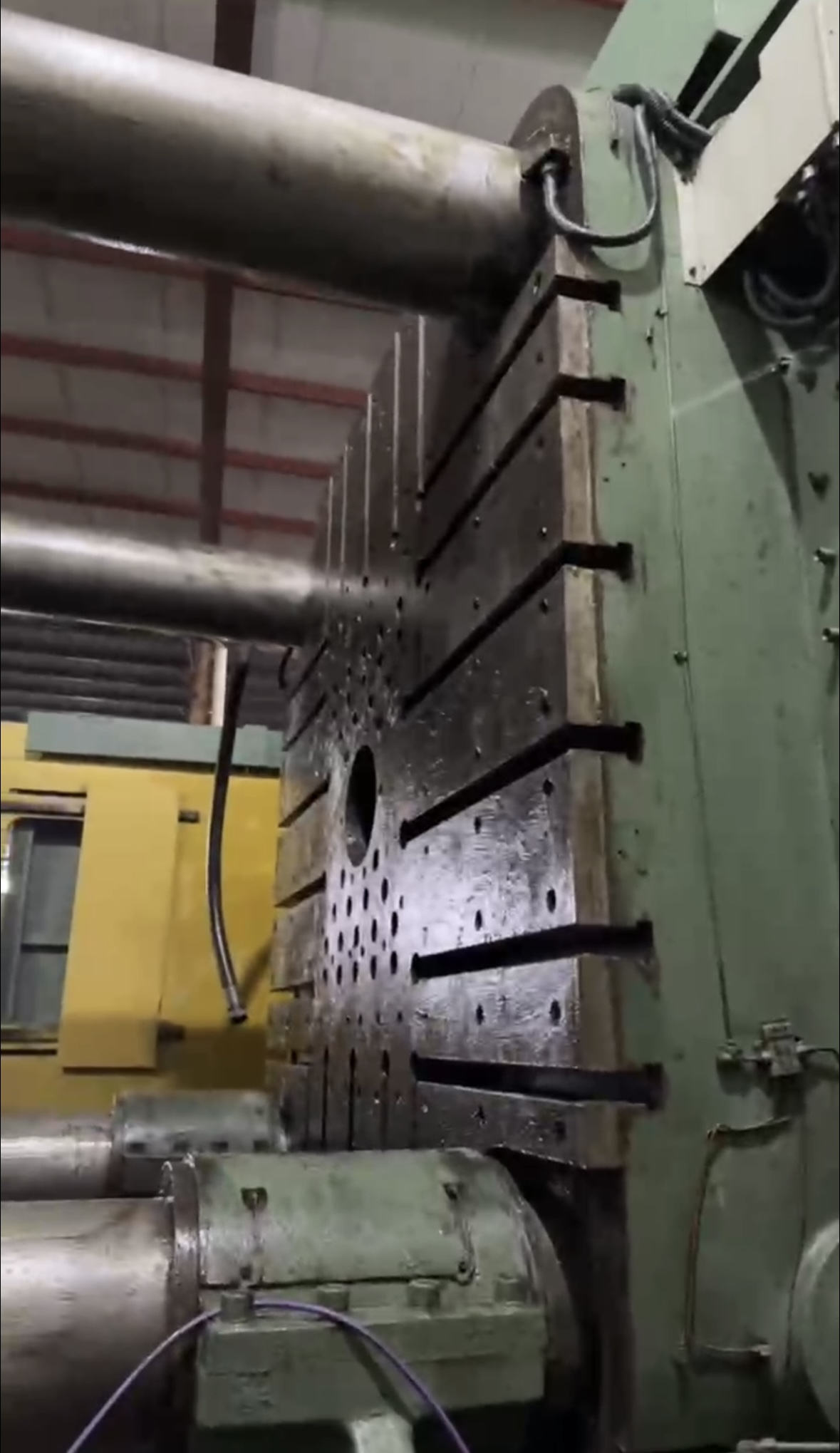

Template size (horizontal x vertical)

mm

2350×2350

Distance between bars (horizontal x vertical)

mm

1500×1500

Pulling bar diameter (Goering column)

mm

Φ310

Injection force (pressurization)

kN

2000

Injection stroke

mm

1100

Injection chamber diameter

mm

φ 120,φ 140

Shot quantity (aluminum)

kg

30-55

Casting pressure (pressurization)

MPa

130-78

Casting area

cm²

1900-3200

Maximum casting projection area (including gate, etc., when the injection ratio is 40Mpa)

cm²

6250

Injection position

mm

-250，-350，-500

The distance between the injection head and the exit

mm

450

Pressure chamber flange diameter

mm

200

The height of the pressure chamber flange protruding from the fixed plate

mm

25

Top output

kN

750

Top out itinerary

mm

30

Oil pump motor power

kW

145

Working pressure of hydraulic system

MPa

16

Recommended oil consumption

L

4000

Machine weight

kg

165000

Machine dimensions (length x width x height)

m

14×4.6×4.5
